| ELEVATOR GUIDE RAIL |
| |
 |
Elevator Machined guide rail |
|
| |
| |
| |
 |
| |

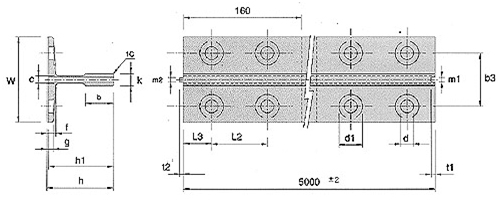

| N.LIFTEE GUIDERAIL SPECIFICATIONS DIMENSIONS AND TOLERANCE |
| size |
dimension |
w |
h |
h1 |
k |
b |
c |
f |
g |
m1 |
m2 |
t1 |
t2 |
| measurement |
|
| tolerance |
2 |
|
±0.1 |
±0.05 |
|
|
|
|
+0.06
0 |
-0.005
-0.065 |
±0.2 |
±0.2 |
| T-78×56×10 | 78 |
56 |
55 |
10 |
26 |
7 |
8.5 |
6 |
3 |
2.95 |
3.5 |
3 |
| T-70×65×9 |
70 |
65 |
64 |
9 |
27 |
7.5 |
7 |
7.5 |
3 |
2.95 |
3.5 |
3 |
| T-82×68×9 |
82 |
68 |
66.6 |
9 |
25.4 |
7.5 |
9 |
8 |
3 |
2.95 |
3.5 |
3 |
| T-89×62×16 |
89 |
62 |
61 |
16 |
34 |
11 |
12 |
11 |
5 |
4.95 |
7.5 |
6.5 |
|
| |
|

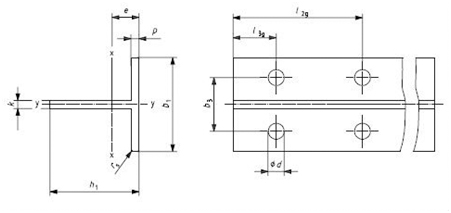

Extra quality grinding guide rail |
|
| |
 |
| |
|
Cold drawn guide rail
|
|
| |
|
| |
 |
COD.
ISO7465/2007 |
b1 |
h1 |
h |
k |
n |
g |
rs |
m1 |
m2 |
t1 |
t2 |
| TOLERANCES |
±0.5 |
±0.2 |
±0.1
(±0.05) |
+0.1
0
(+0.05)
(0) |
+3
0 |
±0.75 |
|
+0.06
0
(+0.03)
(0) |
-0.06
0
(-0.03)
(0) |
±0.1 |
±0.1 |
| T50/A |
50 |
50 |
|
5 |
|
|
1 |
2 |
1.95 |
2.50 |
2.00 |
|
| |
| |
